Weifang Huayuan Diesel Engine Manufacture CO.,LTD Water Cooled Best Diesel Engine,300HP Best Diesel Engine,Weichai Best Diesel Engine
Home > Products > Diesel Engine > Multi Cylinder Diesel Engine > Weichai Water Cooled 300HP Best Diesel Engine

Weichai Water Cooled 300HP Best Diesel Engine

Share to:
    Unit Price: 6000~6500 USD
    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 1 Piece/Pieces
    Delivery Time: 5 Days
  • Ms. Jilly

Basic Info

Model No.: 6126ZLD4

Additional Info

Packaging: plywood case

Productivity: 200 piece per day

Brand: Huafa

Transportation: Ocean

Place of Origin: Weifang China

Supply Ability: 200 piece per day

Certificate: ISO and CE certificate

Product Description

Our 6126ZLD4 Turbo Diesel Engine is STEYR series engine . Its rated output is 223KW , 300HP .

The 6126ZLD4 engine is fitted with electronic governor . The electronic governor controls the engine speed to within + 0.25%

The electronic governor system is made up of three parts :

The engine speed controller – this contains the adjustment screws to set the engine speed and is normally fitted to the control panel .

The actuator – this is contained within the fuel injector pump assembly and controls the engine speed .

The electro - magnetic sensor – this is fitted to the flywheel housing and measures the engine speed .


THE MAIN TECHNICAL PARAMETERS OF 300HP Turbo Diesel Engine :


Technical Data 126 Series 6126ZLD4 300HP @ 1500 rev/min

Basic technical data

Number of cylinders-------------------6

Cylinder arrangement----------------Vertical, in-line

Cycle--------------------------------------four stroke

Induction system ---------------------turbocharged, air to air cooler

Compression ratio-------------------16:1

Bore--------------------------------------126mm

Stroke------------------------------------130mm

Cubic capacity-------------------------9.726 litres

Direction of rotation------------------clockwise,from the front

Firing order-----------------------------1,5,3,6,2,4

Fuel consumption--------------------210g/Kw.H

Lube consumption-------------------1.68g/Kw.H

Exhaust temperature----------------550

Cooling water temperature--------75-95

Max. exhaust back pressure-------8.5 KPA

Engine noise level-------------------118dBA

Flywheel number---------------------SAE NO 1

Flywheel size--------------------------14 inch

Fan model ----------------------------Ø 760 , 10 pieces blades

Total weight

Without radiator----------------------1018KGS

With radiator--------------------------1108KGS

Overall dimensions

Height----------------------------------1900MM

Length----------------------------------900MM

Width-----------------------------------1700MM

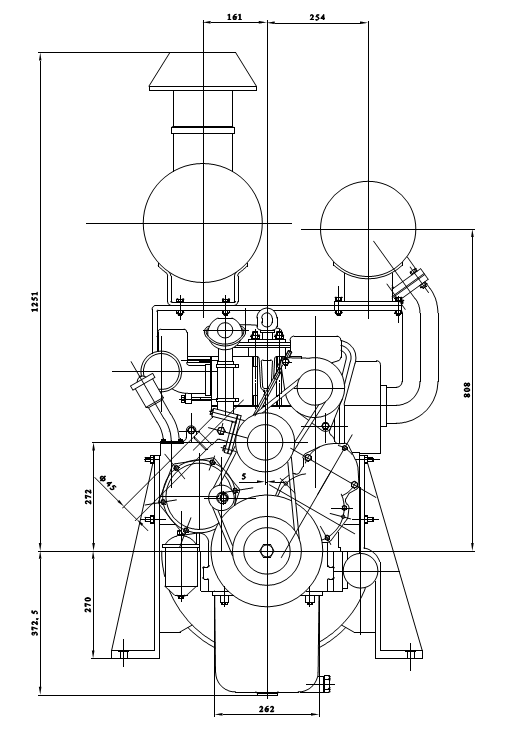

6126ZLD4 front view

20150810102324



6126ZLD4 radiator view

20150810102814

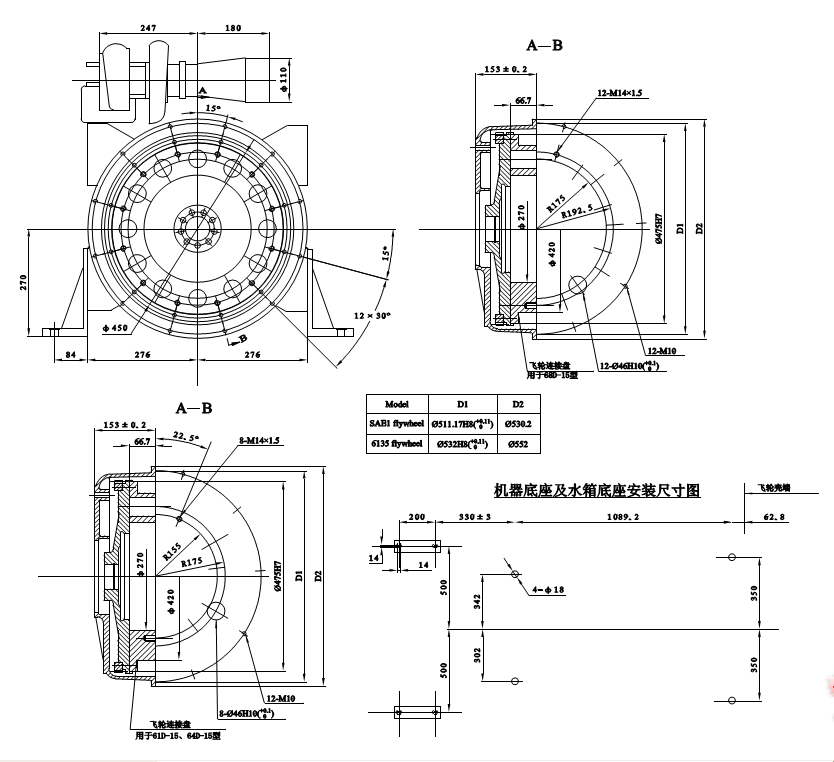

6126ZLD4 rear view

20150810102827



SPARE PARTS

spare parts


OUR COMPANY

our company

Looking for ideal Water Cooled Best Diesel Engine Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the 300HP Best Diesel Engine are quality guaranteed. We are China Origin Factory of Weichai Best Diesel Engine. If you have any question, please feel free to contact us.
